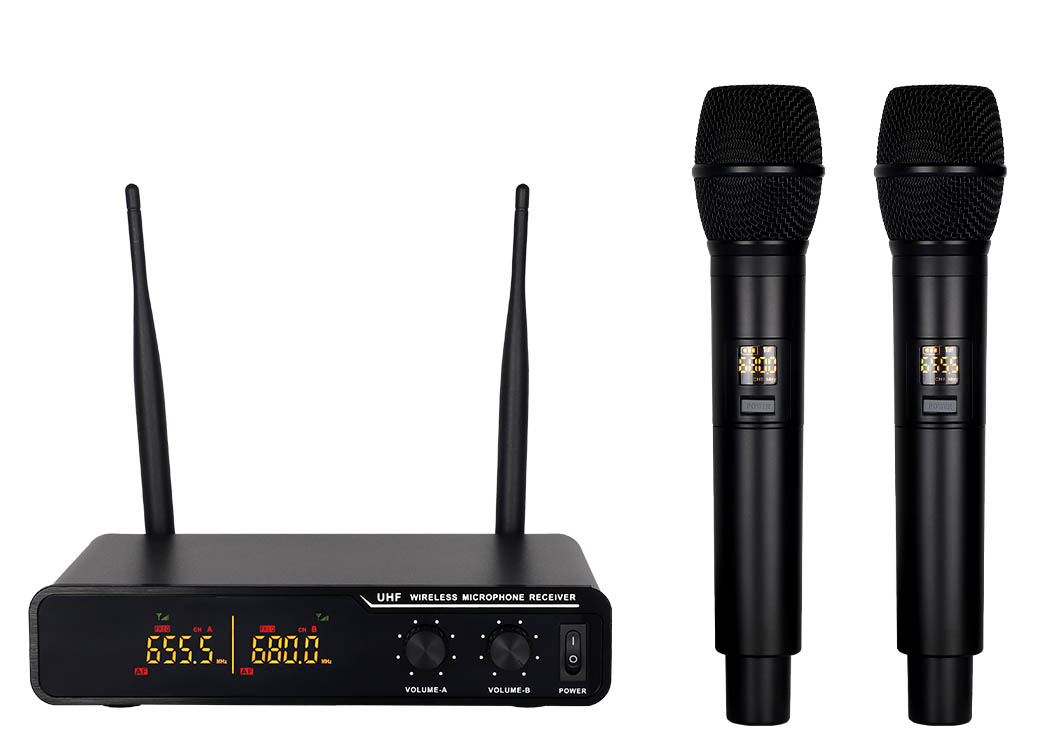

TW210/M6A UHF Wireless microphone

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------
Model：TW210/M6A
Feature：TW200/M6A is a dual channels UHF digital wireless microphone. The device uses a revolutionary new technology in wireless microphone technology. Frequency modulation on transmitter, frequency matches on receiver automatically. 40 frequencies in each channel, effectively solve the problem of strong frequency and strong signal interference. Small size metal receiver, coloring and drawing aluminum alloy panel. The hand-held microphone housing uses zinc alloy and high-grade ABS material, it is not easy to damage. The cartridge is dynamic high-fidelity pickup.


System
Frequency range: 500MHz --- 980MHz
Modulation mode: Digital modulation PSK
Audio sampling rate: 48KHz
Channel spacing: >300KHz
Audio signal to noise ratio: >96dB
Frequency response: 30Hz--20 kHz
Oscillation mode: VCO oscillation inside the chip

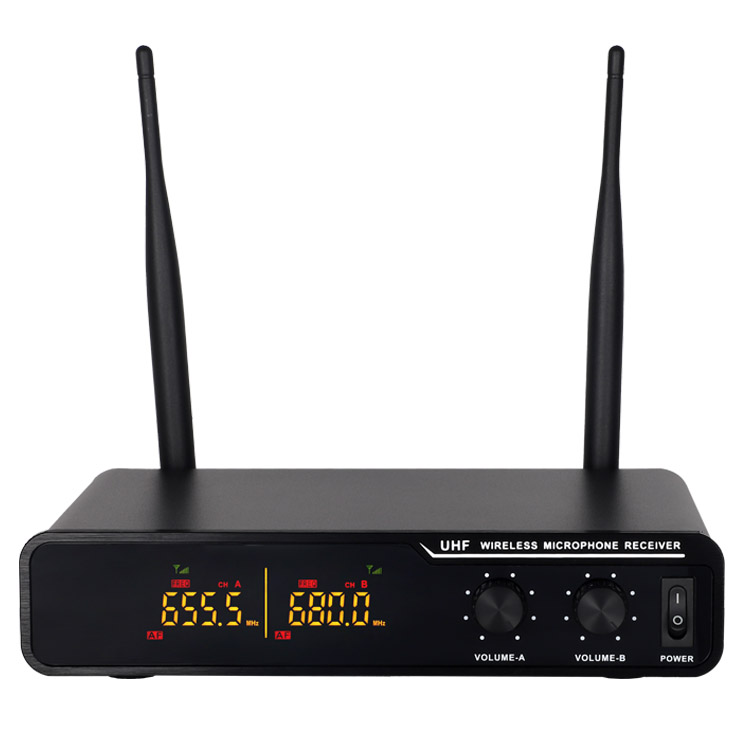

Receiver
Antenna: BNC/50Ω
Sensitivity: -96dBm
Harmonic interference ratio: >80dB
False interference ratio: >70dB
Power consumption: ≤2W

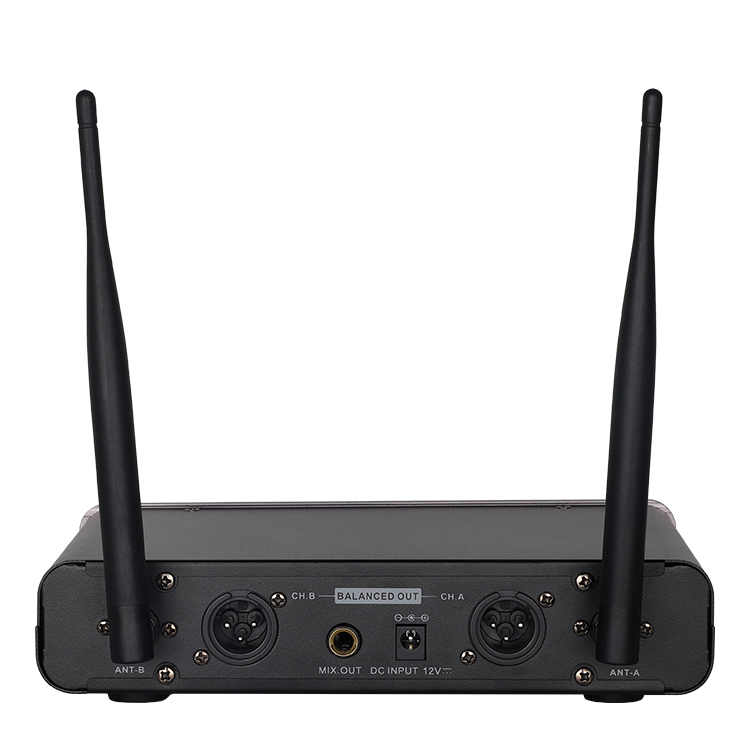

Audio output: Φ 6.35 socket mixed unbalanced output
Power: DC 12V / 500mA
Receiving distance: 50 meters in an ideal environment

Transmitter
Frequency range: 500MHz---980MHz
Transmit power: 10mW
Maximum input sound pressure: 100dB
Cartridge : Dynamic
Audio frequency response: 30Hz~20KHz±3dB
Battery: AA 1.5V × 2
Battery life: more than 6 hours when normal power is emitted
